Angle Control Valves

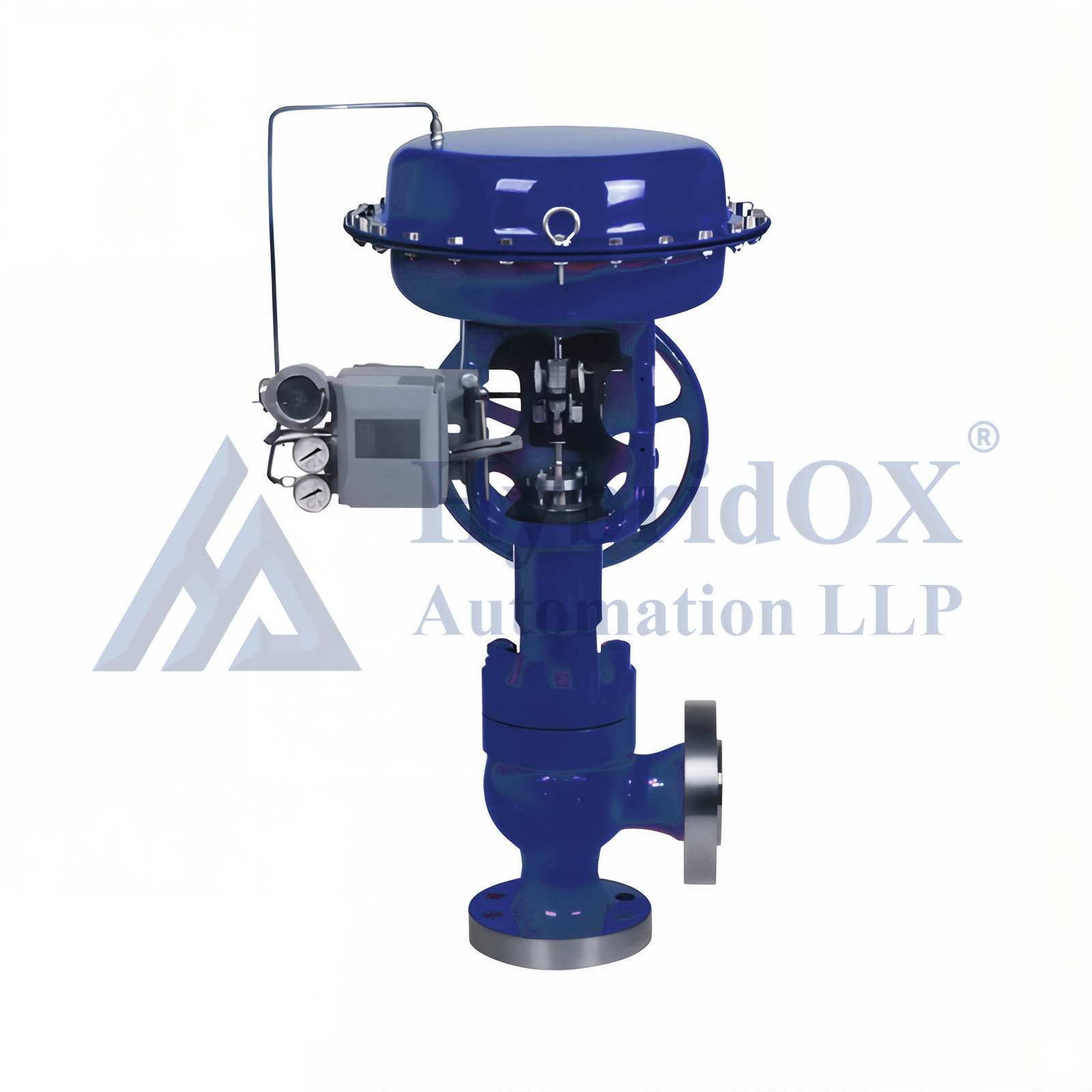

The Angle Control Valve from HybridOX Automation LLP. (Previously HybridOX Automation UK Ltd.) is an extremely advanced valve that can precisely adjust the angle to regulate fluid flow. Because of its unique 90-degree angle body design, which maximizes flow control and minimizes pressure drop, it is ideal for applications requiring accurate flow regulation and efficient space usage.
This valve ensures reliable operation and long-term durability in a variety of industrial situations since it is made using state-of-the-art materials and technology.
Technical Specifications
| Feature | Details |
|---|---|
| SIZE | 15mm to 80mm |
| BODY MATERIAL | 1CF8, CF8M, CF3M (Others are available on request) |
| TRIM / SPINDLE | Stainless Steel SS304, SS316, SS316L |
| END CONNECTION | Female Screwed to BSP or NPT Ends, Flanged ends, Triclover |
| MATERIAL | Carbon steel, Stainless steel, Monel, Duplex, Alloy 20, Hastelloy B/C, Aluminum Bronze, PFA Lined etc. |
| LEAKAGE | Drop Tight/Bubble Tight, Class IV ANSI B16, 104,1976 |
| ACTUATOR BODY | SS 304 Pressed |
| ACTUATOR COVER FLANGE | ASTM A351 Gr. CF8 (SS304) Investment Die-Cast |
| ACTUATOR SPRING | Spring Steel (IS 4454 Gr. III) |
| ACTUATOR PORT CONNECTION | 1/4″ BSP (NPT on request) |
| ACTUATOR OPERATING PRESSURE | 3.5 to 7 Bar(g) |
| ACTUATOR POSITION INDICATOR | NYLON |
| ACTUATOR OPERATING CYCLES | 350 to 650 Cycles / Hr. |
Construction and Build
Accurate Control of Fluid Flow: The HybridOX Automation LLP. Angle Control Valve is made to precisely modulate fluid flow. The angle arrangement ensures ideal process management by providing exact control over pressure and flow rates.
Efficient Design: The valve’s 90-degree body design optimizes fluid flow dynamics by lowering pressure drop and turbulence. This design reduces energy usage while improving system efficiency overall.
Robust Construction: Made of premium materials like carbon steel, stainless steel, or alloys, the valve can survive a variety of challenging operating situations, such as high pressures, corrosive environments, and extremely high or low temperatures.
Versatile Actuation: The valve may be customized to fit the needs of a particular application thanks to its range of actuation options, which include electric, hydraulic, and pneumatic actuators. Reliable and seamless operation is guaranteed by the actuators.
Adjustable Flow Rate: The valve’s precision adjustment mechanisms enable it to be adjusted for various operational and process requirements by fine-tuning flow rates and pressure.
Compact Design: The valve’s angled design provides an effective use of space, allowing it to be installed in confined or tight areas without sacrificing functionality.
Maintenance-Friendly: Featuring easily accessible parts and simple servicing protocols, this product is made to be easily maintained. The modular architecture of the valve makes maintenance and repairs quick and easy.
Safety Measures: Integrated safety measures to guarantee safe operation and safeguard downstream equipment, such as flow control and pressure relief.
Unique Selling Points (USP)
The HybridOX Automation LLP Angle Control Valve is unique due to its precise flow control, efficient 90-degree design, and robust construction. Its tiny size, adjustable flow rate, and flexible actuation make it the ideal choice for a range of industrial applications. The valve’s integrated safety features and low maintenance requirements further enhance its value and dependability. In order to meet the diverse needs of international industries, HybridOX Automation LLP. is dedicated to manufacturing and marketing high-end Angle Control Valves by combining state-of-the-art engineering with exquisite craftsmanship.
Product Application
- Chemical Processing
- Oil and Gas Industry
- Water and Wastewater Treatment
- Power Generation
- HVAC Systems
FAQs
An angle control valve is a type of valve used to control the position of a moveable disc or plug in order to regulate the flow of fluid through a pipe. The body of the valve is normally angled 90 degrees with respect to the direction of flow, enabling accurate regulation of both fluid flow and pressure.
By altering the location of a disc or plug inside the valve body, the angle control valve works. The angular position of the valve allows for efficient control over both flow and pressure. The disc or plug rotates to let fluid pass through when the valve opens, and it restricts or stops the flow when it shuts, therefore controlling the process conditions.
Typically, angle control valves are made of the following materials:
Stainless steel: For its resilience to corrosion and toughness in high-use applications.
Brass: Due to its affordability and appropriateness in less harsh settings.
Carbon steel: For applications requiring great strength and financial benefits.
Alloys: Specialized materials designed to withstand high pressure and temperatures.
Take into account the following elements:
Flow Capacity: Verify that the valve has the capacity to manage the flow rate needed for your application.
Check the valve’s pressure rating to make sure it can tolerate the operating pressures.
Material Compatibility: Select materials that work well with both the operational environment and the fluid under control.
Size and Installation: Ensure the valve size fits your system requirements and installation space.
Typical upkeep consists of:
Inspection: Continually look for indications of damage, leaks, or wear.
Clear out any buildup or debris that might have an impact on the functionality of the valve.
Lubrication: When necessary, lubricate actuators and moving parts.
Calibration: Verify that the valve functions properly and make any required adjustments.
Sure, but be sure the valve is built to withstand high temperatures. Make sure the construction and materials you choose can withstand the temperature range required for your use.
An angle control valve, in contrast to other types, provides:
Accurate control over fluid flow and pressure is made possible by precise flow regulation.
Compact Design: Oriented at a ninety-degree angle, requiring minimal space.
Versatility: Fits a variety of fluid kinds and applications.
One of the top producers and exporters of superior angle control valves is HybridOX Automation LLP., Contact us right now for dependable and efficient flow control systems that are customized to meet your demands.
